Key Features

  • High Intensity Red Alarm Light
  • Silence Function | Light Remains On
  • Pulse to Relay Output
  • High Impact All Plastic Polycarbonate Shell
  • Super Loud 108dB Audible Alarm
  • Rugged NEMA 4X Industrial Enclosure
  • External Wall Mounting Brackets
  • Completely Pre-Wired

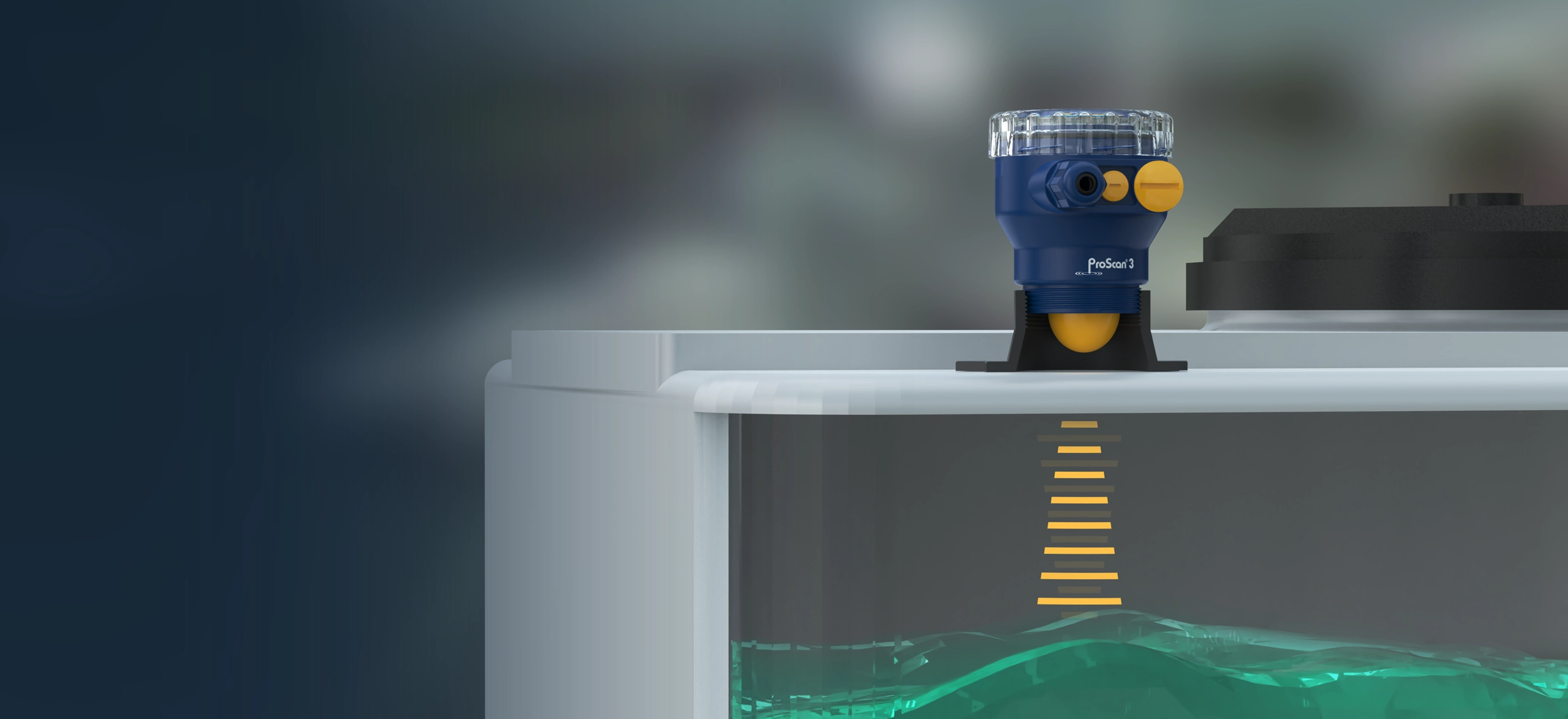

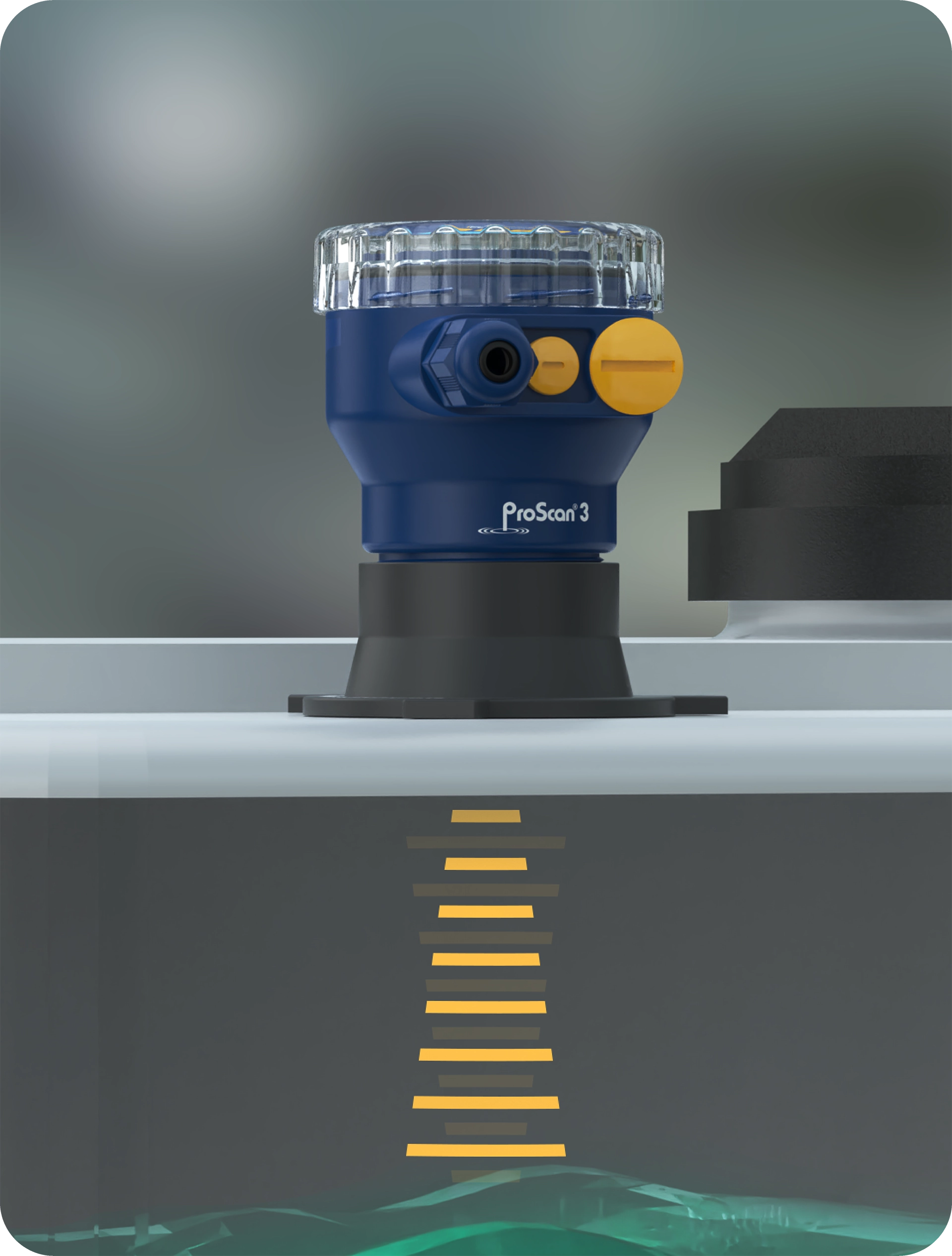

  • What is a Radar Level Sensor?
A liquid level sensor operates by detecting the presence or absence of material or determining the level of material within a container. This is achieved using various technologies like capacitance, ultrasonic waves, or, as in the case of radar, by measuring the time taken for a signal to bounce back from the material surface. Level sensing can be contact or non-contact-based, depending on the method employed. A radar level sensor is a device used to measure the level of liquids, solids, or slurries in various challenging industrial applications. It utilizes radar technology to determine the distance from the sensor to the surface of the material being measured.
  • What is a Radar Level Sensor?
A liquid level sensor operates by detecting the presence or absence of material or determining the level of material within a container. This is achieved using various technologies like capacitance, ultrasonic waves, or, as in the case of radar, by measuring the time taken for a signal to bounce back from the material surface. Level sensing can be contact or non-contact-based, depending on the method employed. A radar level sensor is a device used to measure the level of liquids, solids, or slurries in various challenging industrial applications. It utilizes radar technology to determine the distance from the sensor to the surface of the material being measured.
Measuring Performance
Minimum Range 0.1m
Maximum Range 10m
Resolution 1mm
Azimuth Beam Width (3 dB) 3°
Elevation Beam Width (3 dB) 3°
Measurement Accuracy ±2mm
Operating Conditions
Operating Frequency Band 76 – 81 GHz
Main Power Supply 9 – 24 VDC
Operating Average Current 20 mA
Effective Isotropic Radiated Power 13 dBm
Communication Interface 4-20mA | RS485
Enclosure Protection NEMA 4X | IP68
Operating Temperature Range -49°F – +185°F | -45°C – +85°C
Operating Conditions
Housing Material PP+PC Body | PP Transducer316 SS+PC Body | PP Transducer
Weight 280g 770g<
Installation Mounting Bracket

Applications

  • Low | High Level Alarm
  • Leak Detection
  • Bag | Filter Change Out
  • Upset Condition Notification
  • Flow | No Flow Sensors | Pump Protection

Related Blogs

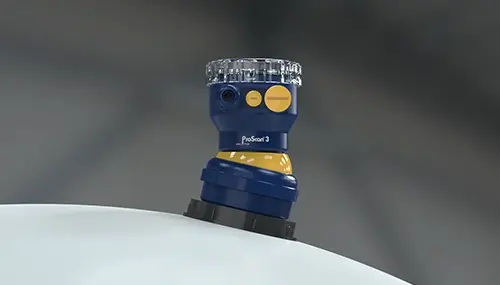

SBF

Tough Solutions for Tough Environments

Twist, align, done—bulkhead built for dome tank tops.

  • 2” NPT Connection
  • 20o Rotation Angle
  • Perfect Mate for Plastic Tanks
Explore Products

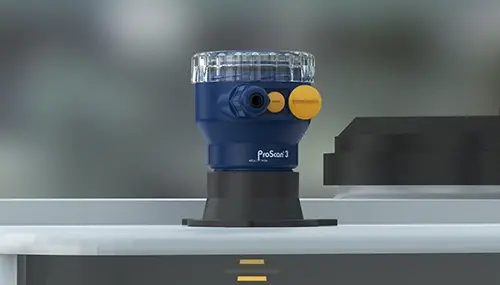

LB75 Series Tank Top Mount Bracket

Designed for ease, just place it and you’re
set.

  • 2” NPT Connection
  • Easy Installation
  • Corrosion Resistant PVC Body
Explore Products

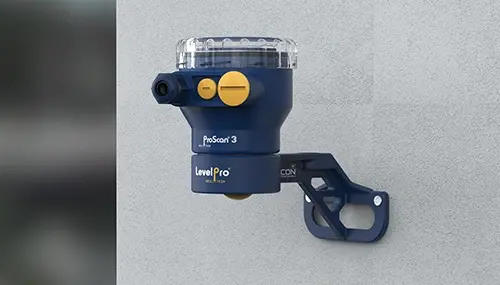

LB50 Series Wall Mount Bracket

Strong by design, precise by purpose

  • 2” NPT Connection
  • Heavy Duty Design
  • Corrosion Resistant GFPP Body
Explore Products
